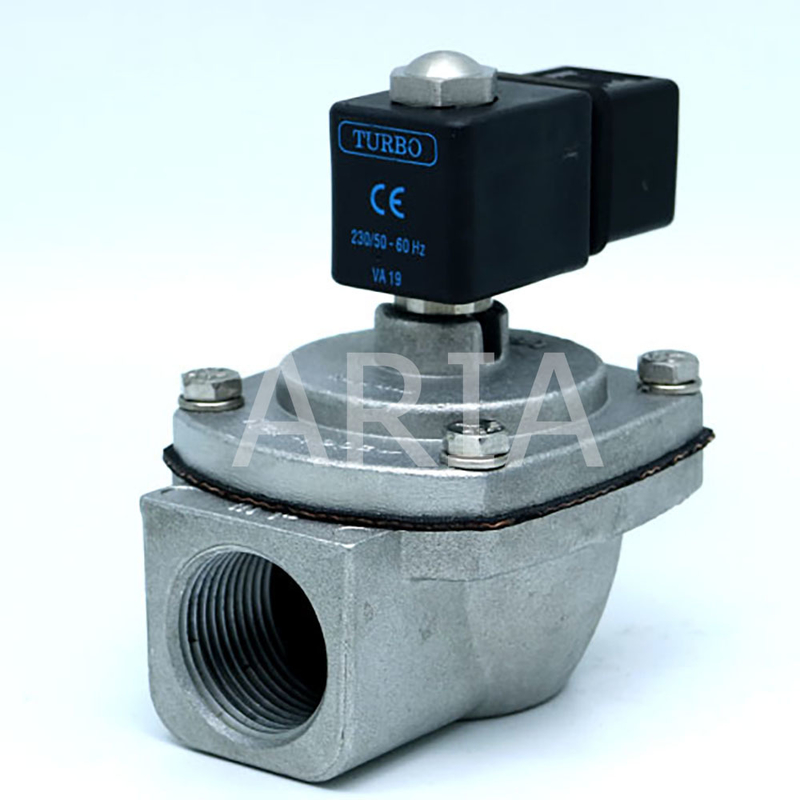

Italian TURBO electromagnetic pulse valve right angle 1-inch FP25 imported with original packaging

Product Description:

Operating Principle: Based on pulse jet technology, it instantly releases compressed air through electromagnetic or pneumatic control to form high-speed pulse airflow, which cleans the filter bags/cartridges and removes attached dust.

Control Methods:
1. Electromagnetic control: The valve port is quickly opened/closed by the solenoid valve receiving electrical signals, with a fast response speed (millisecond level).
2. Pneumatic control: Driven by a pneumatic control valve, it is suitable for high-pressure and harsh environments (such as high-temperature and corrosive occasions).

Working Pressure: Usually 0.4-0.7MPa (special models can adapt to higher pressures). Pressure stability directly affects the blowing force and ash cleaning effect.
Blowing Volume and Blowing Time:
Blowing volume: The amount of compressed air released in a single time (related to the valve port diameter and pressure), which needs to match the size of the filter bag/cartridge.
Blowing time: Generally 0.05-0.2 seconds, which can be adjusted through the control system. If it is too short, the ash cleaning will be incomplete; if it is too long, energy will be wasted.
Response Time: The time from receiving the signal to fully opening is usually ≤50 milliseconds. A fast response can reduce compressed air loss and increase the ash cleaning frequency.
Interface Size: The pipe diameters of the air inlet and air outlet (connected to the blowing pipe). Common specifications include DN20, DN25, DN32, etc. (or inch specifications 1/2", 3/4", etc.), which need to match the system pipeline.
Working Medium: Dry and clean compressed air (oil content ≤0.5ppm, water content ≤-40℃ dew point) to avoid blockage or corrosion of the valve body by impurities.

Working Temperature: Regular models: -10℃~60℃ (electromagnetically controlled).
High-temperature models: Can adapt to above 150℃ (need to use high-temperature resistant sealing materials and valve body materials).
Corrosion Resistance: The valve body material can be cast iron, aluminum alloy (with surface anti-corrosion treatment), or stainless steel (304/316). Stainless steel models are suitable for humid and corrosive environments.

Valve Body Structure: It adopts a diaphragm structure (the core component is an elastic diaphragm). The valve port is opened/closed through the rapid deformation of the diaphragm, which has the characteristics of good sealing, low wear, and long service life.
Diaphragm Material: Common materials are nitrile rubber (NBR, oil-resistant and wear-resistant) and fluororubber (FKM, high-temperature resistant and chemical corrosion resistant). The selection depends on the working medium and temperature.

Technical Parameters:

Pulse Valve Model : FP40

Applications:

TURBO Pulse Jet Valves are versatile and reliable components used in a variety of industrial applications. With a brand name of TURBO and originating from China, these valves are known for their high quality and dependable performance. They come with a CE certification, ensuring compliance with international standards for safety and quality.

These Diaphragm Valves are suitable for a wide range of product application occasions and scenarios due to their robust construction and efficient operation. They can be used in dust collection systems, bag filters, air purifiers, and other air pollution control equipment. The valves are ideal for industries such as cement, power generation, food processing, pharmaceuticals, and more.

The minimum order quantity for TURBO Pulse Jet Valves is 1, making them accessible for both small-scale and large-scale projects. The price is negotiable based on the quantity ordered, with packaging details available in cartons or as per the clients' specific requirements. Delivery time is quick, typically ranging from 1 to 7 working days after payment.

Payment terms for these valves include T/T, Western Union, and Paypal, offering flexibility to customers. With a supply ability of 5000 pieces per month, TURBO Pulse Jet Valves ensure consistent availability for ongoing operations.

These valves operate at voltages of DC24V, AC110V, and AC220V, making them adaptable to various electrical systems. They can withstand an operating pressure range of 0.1 to 0.8MPa and have a degree of protection rated at IP65, ensuring durability in challenging environments.

The valve body of TURBO Pulse Jet Valves is constructed from high-quality die-cast aluminum alloy, providing strength and corrosion resistance. They are designed to work with clean air as the working medium, maintaining efficiency and reliability in industrial settings.
