| 브랜드 이름: | GOYEN |
| 인증: | CE |
| Model Number: | CA45T |
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Carton /As The Clients Require |
| Delivery Time: | 1-7Work Days After Payment |
| 지불 조건: | T/T, Western Union, PayPal |
| Supply Ability: | 5000 Pieces/1Month |
| 밸브 시리즈 :: | T 시리즈 | 밸브 구조: | 직각, 나사산 포트 |
|---|---|---|---|
| 포트 크기 :: | 1 1/2 인치 | 코일 전압: | DC24V, AC110V, AC220V |
| 작동 압력 범위: | 0.35 ~ 0.85 MPa | 다이어프램 재료: | NBR, FKM |
| 강조하다: | 1.5-inch high-altitude pulse valve,right angle pulse jet valve,diaphragm pulse valve with warranty |
||

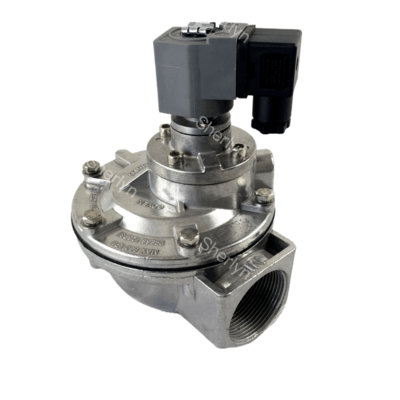

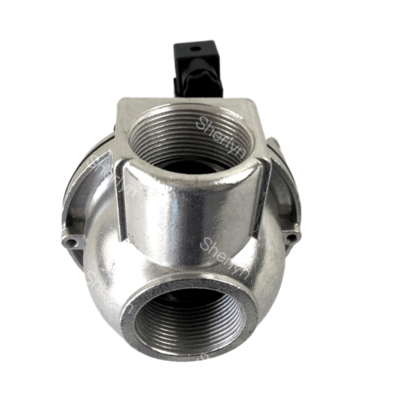

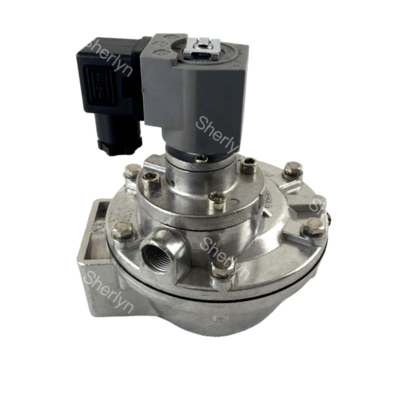

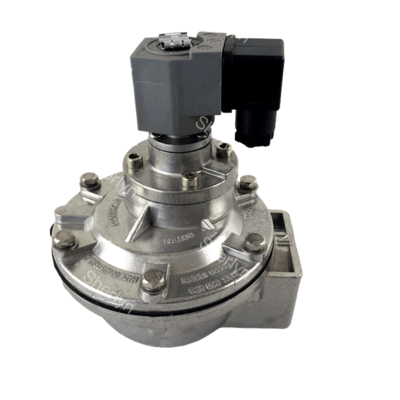

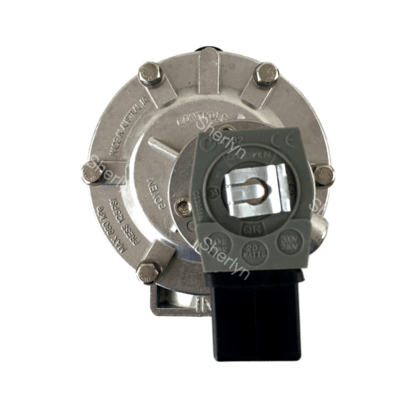

Pulse Jet Valve: A pulse jet valve is a type of valve that transforms a continuous input signal into a pulsed signal through the delay created by the flow of gas passing through gas resistance and gas capacitance.
Inner Structure: The internal design of the air inlet of the right angle pulse jet valve and the incorporation and usage of the positioning steel ring help prevent loosening caused by inertial impacts. Simultaneously, they ensure precise installation positioning.
Longevity and Convenience: Even after prolonged use, the stainless steel nut on the valve can still guarantee effortless disassembly and reassembly, maintaining user-friendliness.
Bag Filter Pulse Cleaning System
Function: The bag filter pulse cleaning system is designed to control the rapid injection of compressed air into the filter bags in order to effectively remove surface dust.
Applicable Equipment:
This system is especially useful for pulse airflow dredging in situations where pipelines are blocked, such as in grain and fly ash conveying pipelines.
Specification of T Series Pulse Jet Valves:
| Model No | CA15T | CA20T | CA25T | CA35T | CA45T | CA50T | CA62T | CA76T |
| Office Size | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 |
| (mm) | ||||||||
| Port Size | 1/2'' | 3/4'' | 1'' | 1 1/2'' | 1 1/2'' | 2'' | 2 1/2'' | 3'' |
| (Inch) | ||||||||
| Diaphragm Number | 1 | 2 | ||||||
| Working pressure | 0.35 to 0.85 MPa (5 to 125 PSI) | |||||||
| Voltage | 24VDC, 24VAC, 110VAC, 220VAC | |||||||
| Diaphragm Material | NBR, FKM, EPDM | |||||||
| Body Material | Aluminum Alloy | |||||||
| Valve Structure | Right Angle (Outlet is at 90° to Inlet), Threaded Port | |||||||
Our Product Technical Support and Services for the Pulse Jet Valves product are designed to ensure optimal performance and reliability. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance to help you get the most out of your equipment.
Additionally, we offer training programs to help you and your staff better understand the operation and maintenance of our Pulse Jet Valves. Our goal is to support you every step of the way to ensure that your equipment continues to perform at its best.
Product Packaging:
The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation. Each valve is securely placed in a foam cushion to prevent any damage during shipping.
Shipping:
Once your order is placed, the Pulse Jet Valves will be shipped out within 1-2 business days. We partner with reliable shipping carriers to deliver your valves safely and on time. You will receive a tracking number to monitor the delivery status of your order.
