| 브랜드 이름: | GOYEN |
| 인증: | CE |
| Model Number: | CA45T |
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Carton /As The Clients Require |
| Delivery Time: | 1-7Work Days After Payment |
| 지불 조건: | T/T, Western Union, PayPal |
| Supply Ability: | 5000 Pieces/1Month |
| 포트 크기 :: | G1-1/2 인치 | 코일 전압: | AC24V, AC110V, AC220V, DC24V |
|---|---|---|---|
| 작동 압력 범위: | 솔레노이드 | 씰 재료: | NBR (공통), 모두 사용 가능합니다 |
| 애플리케이션: | 흡진장치 | ||
| 강조하다: | 1.5-inch GOYEN pulse valve,high-altitude pulse jet valve,right angle diaphragm valve K3500 |
||
Pulse Jet Valve Description:
The Pulse Jet Valve is a type of valve that converts the continuous input signal into a pulse signal by delaying the flow of gas through gas resistance and capacity. This design enhances its functionality and effectiveness in various applications.
Internal Structure and Installation:

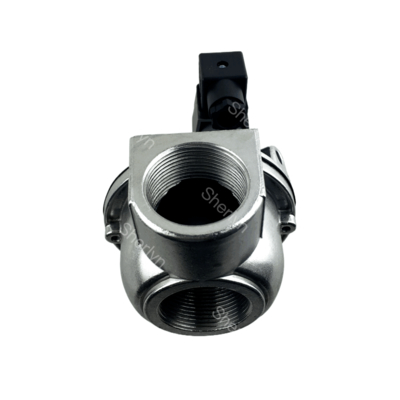

The internal structure of the air inlet on the right angle Pulse Jet Valve, along with the proper installation and usage of the positioning steel ring, help prevent loosening caused by inertial impact. Additionally, this setup ensures precise and accurate positioning during installation without any compromises.
Long-Term Durability:
Even after prolonged usage, the stainless steel nut of the valve continues to offer reliable performance. It enables convenient disassembly and reassembly when required, contributing to the overall longevity and maintenance ease of the Pulse Jet Valve.
Bag Filter Pulse Cleaning System
Function: Control the instant release of compressed air into the filter bag to eliminate surface dust.
Applicable Equipment:
Used for pulse airflow purging when pipelines are obstructed (such as in grain and fly ash conveying pipelines).

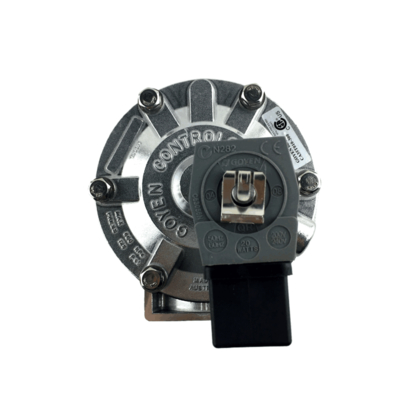

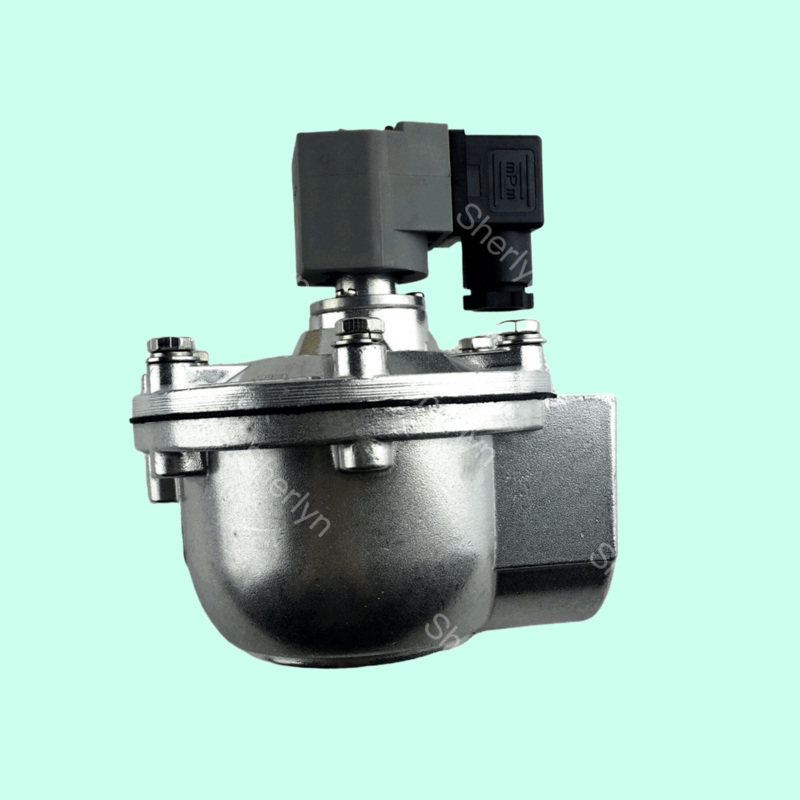

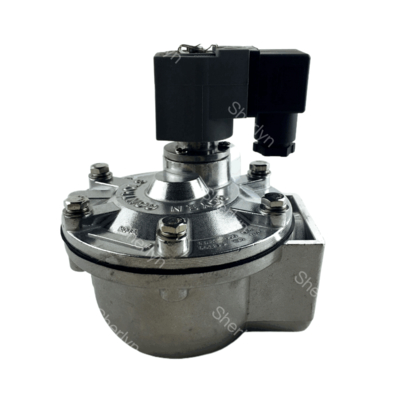

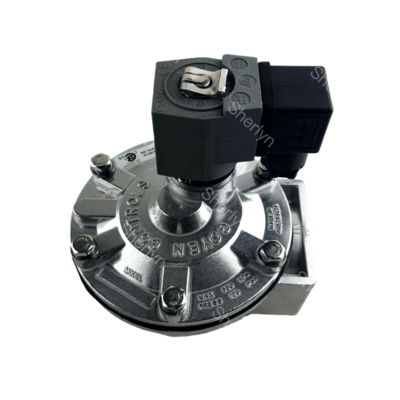

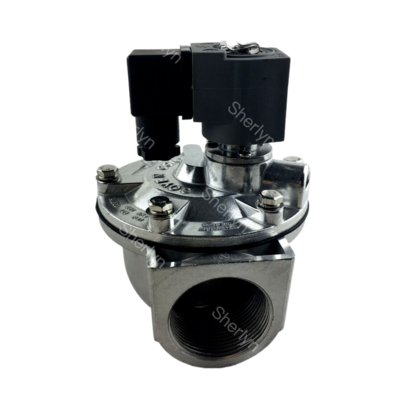

CA35T 1-1/2 Inch Right Angle Dust Collector Single Diaphragm Valve
The electromagnetic pulse valve controls the opening and closing of the valve body unloading hole according to the electric signal. When the valve body is unloaded, the pressure gas in the cavity behind the valve is discharged, and the pressure gas in the cavity before the valve is throttled by the female pressure hole in the diaphragm, the diaphragm is lifted, and the pulse valve is blown. When the valve body stops unloading, pressurized gas quickly fills the back cavity of the valve through the damping hole. Due to the difference in the area of force on the valve body on both sides of the diaphragm, the gas in the back cavity of the valve has a large force and the diaphragm can be closed reliably The injection port of the valve, the pulse valve stops blowing.
The moment the pulse valve is opened, a strong impulse air flow is generated, so that the bag can be blown instantly.
Specification of CA35T Pneumatic Pulse Valve:
| Model No. | CA35T |
| Port Size | G1-1/4'' |
| Action Type | Pilot Operated |
| Valve Type | Right Angle |
| Number of Diaphragm | 1 |
| Connection Type | Threaded |
| Working Medium | Air |
| Temperature | -5℃ - 55℃ |
| Pressure | 0.3~0.8Mpa |
| Voltage | AC24V, AC110V, AC220V, DC24V |
Our Product Technical Support team for Pulse Jet Valves is dedicated to providing assistance with troubleshooting, installation guidance, and product maintenance to ensure optimal performance.
Our Services include on-site support, product training, and remote technical assistance to help you maximize the efficiency and reliability of your Pulse Jet Valves.
Product Packaging:
The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation. Each valve is wrapped in protective material to prevent any damage during shipping.
Shipping Information:
We offer fast and reliable shipping options for our Pulse Jet Valves. Orders are usually processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your package.
