| 브랜드 이름: | Mecair |
| 인증: | CE |
| Model Number: | DB16 |
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Carton |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Brand na me: | Mecair | Size: | 3/4'' |
|---|---|---|---|
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | NBR (Buna) |
| 강조하다: | 3/4 inch pulse valve diaphragm,DB16 Mecair pulse valve repair kit,VNP206 VEM216 Magar diaphragm replacement |
||
| Product Name: | DB16/G Diaphragm Repair Kit | Diaphragm Material: | NBR (Buna) |
|---|---|---|---|
| Spring: | Supply | Packaging: | Individual Packaging |
| Diaphragm For 3/4'' Pulse Valve: | DB16/G | Diaphragm For 1'' Pulse Valve: | DB18/G |
| Diaphragm For 1 1/2'' Pulse Valve: | DB112/G, DB114/C + DB16/G | Diaphragm For 2'' Pulse Valve: | DB116/G + DB16/G |
| Diaphragm For 2-1/2'' Pulse Valve: | DB120/C + DB16/G | Fitted Valves: | VNP, VEM Mecair Pulse Jet Valves |
| Highlight: |
DB16 Diaphragm Repair Kit,3/4''Diaphragm Repair Kit,Mecair Type DB16 |
||

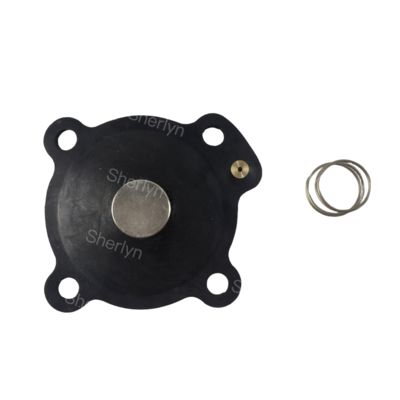

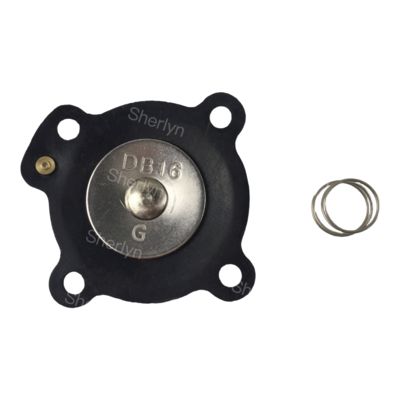

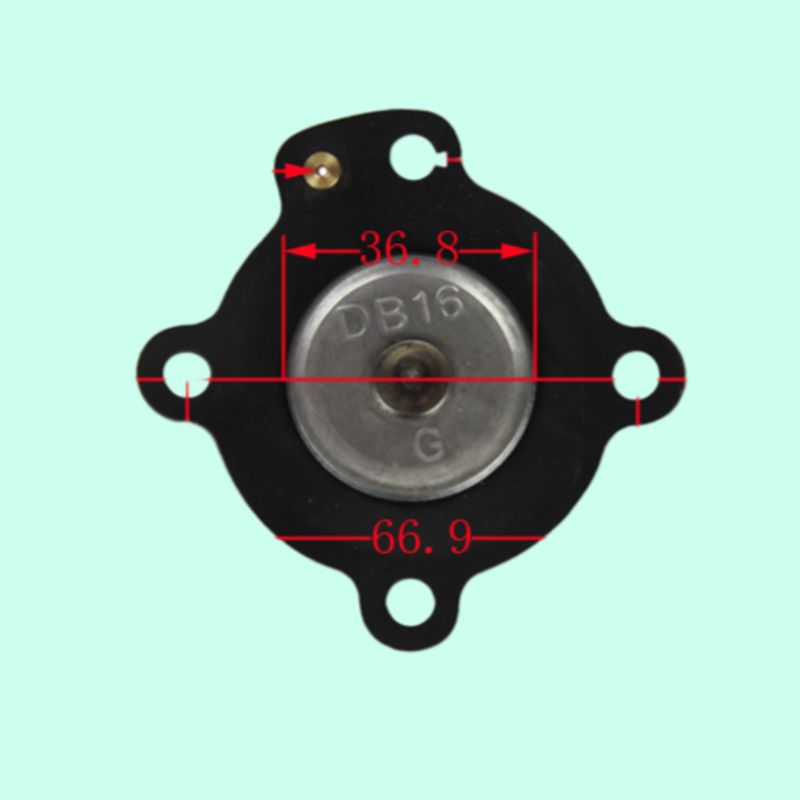

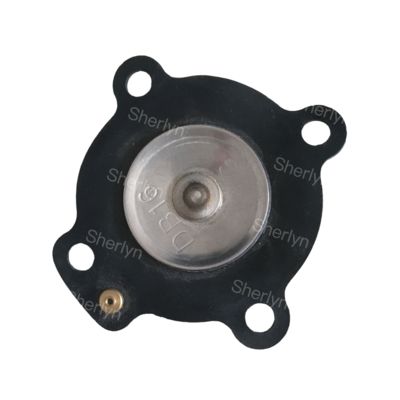

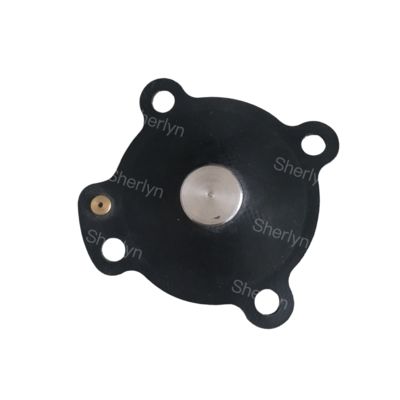

This is DB16/G diaphragm repair kit for Mecair 3/4'' VNP206, VEM206, VNP306, VEM306 pulse jet valve.
1. Diaphragm Repair Kit: DB16/G, DB18/G, DB112/G, DB114/C, DB116/C, DB120/C.
2. Fitted Valves: VNP206, VEM206, VNP306, VEM306, VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708, VNP212, VEM212, VNP312, VEM312, VNP412, VEM412, VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714, VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716, VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720.
Industrial Bag-type Dust Removal System
Purpose: Control compressed air pulse blowing to remove accumulated dust on filter bags.
Industry Cases:
Cement Plant: Dust collector at the kiln end (flue gas temperature < 80°C).
Steel Plant: Dust removal at the sintering machine head (requires pre-cooler).
Wood Processing: Sawdust collection system.
Powder Pneumatic Conveying Clearing Blockages
Install pulse valves at blockage points in the pipeline, triggering instant airflow impact with C113825 diaphragms to clear obstructions (e.g., food-grade calcium carbonate, plastic granule conveying).
Material Bin Arch-breaking Device
Break material arches in coal powder bins/grain bins (operating frequency: ≤30 times/minute).
3/4'' Dust Collector Pulse Jet Valve DB16 Nitrile Diaphragm Repair Kit
This is DB16/G diaphragm repair kit for Mecair 3/4'' VNP206, VEM206, VNP306, VEM306 pulse jet valve.
1. Diaphragm Repair Kit: DB16/G, DB18/G, DB112/G, DB114/C, DB116/C, DB120/C.
2. Fitted Valves: VNP206, VEM206, VNP306, VEM306, VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708, VNP212, VEM212, VNP312, VEM312, VNP412, VEM412, VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714, VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716, VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720.
| Ordering code | Fitted valve code | Valve port size | Material |
| DB16 | VNP206, VEM206, VNP306, VEM306 | 3/4'' | Nitrile/Buna |
| DB18 | VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708 | 1'' | Nitrile/Buna |
| DB112 | VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 | 1-1/2'' | Nitrile/Buna |
| DB114 | VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 | 1-1/2'' | Nitrile/Buna |
| DB116 | VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 | 2'' | Nitrile/Buna |
| DB120 | VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 | 2-1/2'' | Nitrile/Buna |
| Tips: EPDM, FKM all available. | |||
Our Product Technical Support and Services for the Pulse Valve Diaphragm include:
- Installation guidance and support
- Troubleshooting assistance
- Maintenance recommendations
- Product training and education
- Warranty information and claims processing
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for use in pulse valves.
Material: Durable and flexible rubber.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Method: Standard shipping
Shipping Time: 3-5 business days
