| 브랜드 이름: | ASCO |
| 인증: | CE |
| Model Number: | C113827 |
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Carton |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Diaphragm Material: | NBR, VITON | Size: | 1.5'' |
|---|---|---|---|
| Brand name: | ASCO | Product Name: | Pulse Valve Diaphragm |
| Fitted Pulse Valve Model: | G353A045 | ||
| 강조하다: | ASCO 1.5-inch diaphragm repair kit,electromagnetic pulse valve SCG353A047,NBR/VITON dust collector accessories |
||
| Product Name: | Pulse Valve Diaphragm | Ordering Code: | C113827, C113-827 |
|---|---|---|---|
| Diaphragm Material: | NBR, VITON | 1 Set: | 1pc Big Diaphragm, 1pc Small Diaphragm, 1pc Springs |
| Fitted Pulse Valve Port Size: | 1.5'' | Fitted Pulse Valve Model: | SCG353A047 |
| Highlight: |
C113827 NBR Diaphragm Kit,1-1/2'' NBR Diaphragm Kit,ASCO C113827 Diaphragm |
||
C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃.
Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.
Industrial Bag Type Dust Removal System
Function: Control compressed air pulse blowing to remove accumulated dust on filter bags
Industry Cases:
Cement Plant: Dust collector at the kiln end (gas temperature < 80℃)
Steel Plant: Dedusting at the sintering machine head (requires a pre-cooler)
Wood Processing: Sawdust dust collection system
Powder Pneumatic Conveying Declogging
Install pulse valves at pipeline blockage points, triggering instantaneous airflow impact using C113825 diaphragm for unblocking (e.g., food-grade calcium carbonate, plastic pellet conveying)
Material Bin Arch Breaking Device
Break material bridging in coal powder bin/grain bin (operating frequency: ≤30 times/minute)

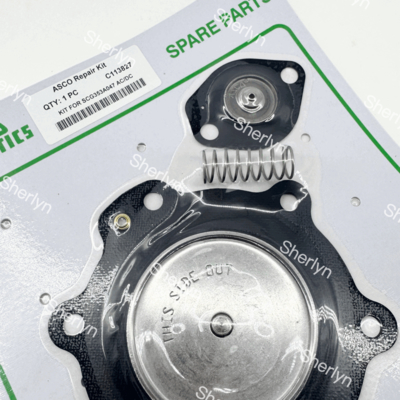

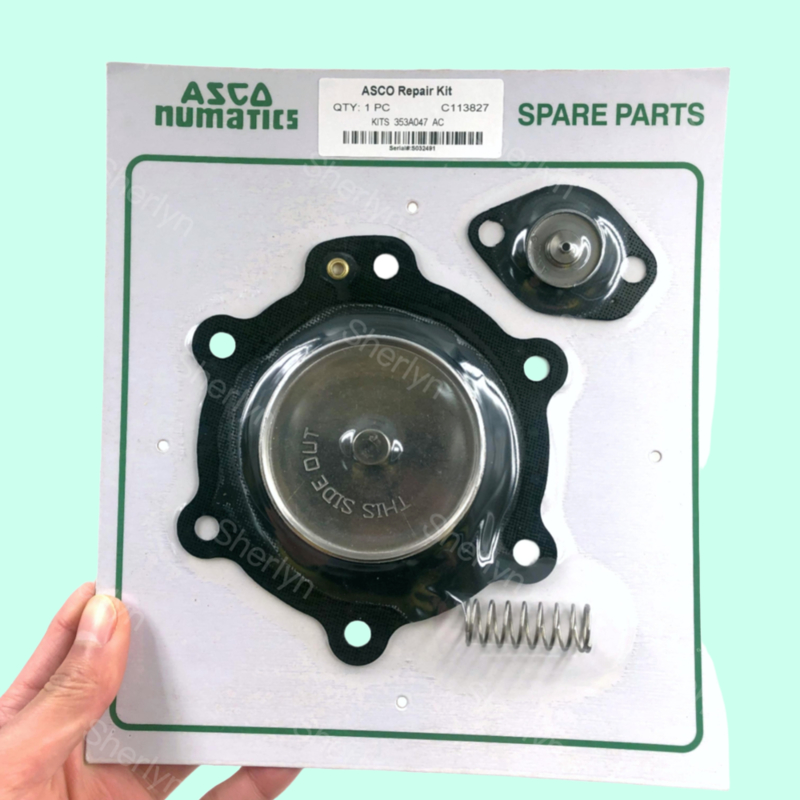

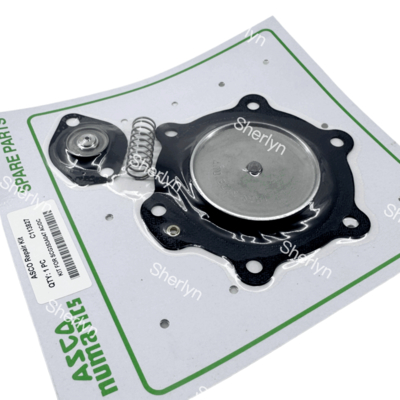

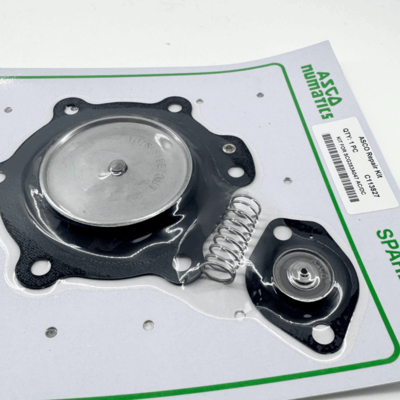

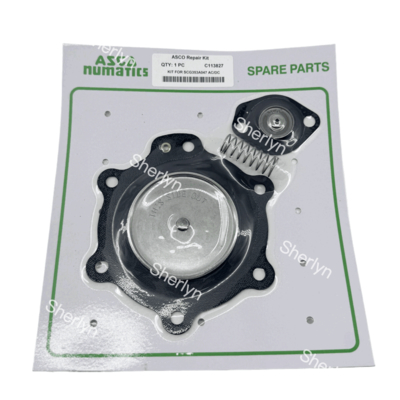

C113827 1-1/2'' NBR Diaphragm Kit For ASCO Pulse Valve SCG353A047
C113827, C113-827 Diaphragm (Membrane) for ASCO pulse valve SCG353A047; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
| Valve Port Size | Pulse Valve Model | Diaphragm Model | Diaphragm Material |
| (FKM is also available) | |||
| 3/4'' | SCG353A043 | C113444 | TPE (White), NBR (Black) |
| 1'' | SCG353A044 | ||
| 3/4'' | SCG353-052 | ||
| 1'' | SCG353-053 | ||
| 3/4'' | SGG353A043 | ||
| 1'' | SGG353A044 | ||
| 3/4'' | SGG353-052 | ||
| 1'' | SGG353-053 | ||
| 1 1/2'' | SCG353A047 | C113827 | NBR |
| SGG353A065 | |||
| 2'' | SCG353A050 | C113685, C113686 | NBR |
| 2 1/2'' | SCG353A051 | ||
| 3'' | SCXE353.060 | C123432, C123433 | NBR |
| SCG353D060 | |||
| 3/4'' | G3530A41 | C113443 | NBR |
| 1'' | G353A042 | ||
| 3/4'' | G353-055 | ||
| 1'' | G353-056 | ||
| 1 1/2'' | G353A045 | C113825 | NBR |
| G353-066 | |||
| 1 1/2'' | G353A046 | C113826 | NBR |
| G353A063 | |||
| 2'' | G353A048 | C113684 | NBR |
| 2 1/2'' | G353A049 |
Our Product Technical Support team for the Pulse Valve Diaphragm is dedicated to providing assistance with any technical issues or questions that may arise. We offer comprehensive services to ensure that our customers receive the support they need to effectively use and maintain their pulse valve diaphragms.
Our services include troubleshooting, installation guidance, maintenance tips, and product training. We are committed to helping our customers achieve optimal performance and longevity from their pulse valve diaphragms.
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, designed for efficient and reliable operation.
Package Contents: One pulse valve diaphragm
Package Material: Durable cardboard box
Shipping Method: Standard delivery
Shipping Time: 3-5 business days
