| 브랜드 이름: | ASCO |
| 인증: | CE |
| Model Number: | C113826 |
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Carton |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | NBR, FKM |
|---|---|---|---|
| Brand name: | ASCO | Size: | 1.5'' |
| 강조하다: | ASCO 1.5-inch diaphragm repair kit,pulse valve diaphragm replacement,SCG353A046 diaphragm repair kit |
||
| Product Name: | Pulse Valve Diaphragm | Suitable Pulse Valve Model: | G353A046 |
|---|---|---|---|
| Diaphragm Material: | NBR, FKM | 1 Set: | 1x Big Diaphragm, 1x Small Diaphragm, 2x Springs |
| Highlight: |
C113826 Diaphragm Repair,ASCO G353A046 Diaphragm Repair Kit,ASCO C113826 Diaphragm |
||
1-1/2" C113825 C113-825 NBR Diaphragm For ASCO Pulse Jet Valve
C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃.
Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.
Industrial Bag-type Dust Removal System
Function: Control compressed air pulse blowing to remove the accumulated dust on filter bags
Industry Cases:
- Cement Plant: Dust collector at the kiln tail (smoke temperature < 80°C)
- Steel Plant: Dust removal at the sintering machine (requires pre-cooler)
- Wood Processing: Sawdust collection system
Powder Pneumatic Conveying Blockage Clearing
Install pulse valves at pipeline blockage points, triggering instantaneous airflow impact using C113825 diaphragms to clear obstructions (e.g., food-grade calcium carbonate, plastic granules conveying)
Silo Arch Breaking Device
Break material arch in coal powder silos/grain silos (operating frequency: ≤30 times/minute)

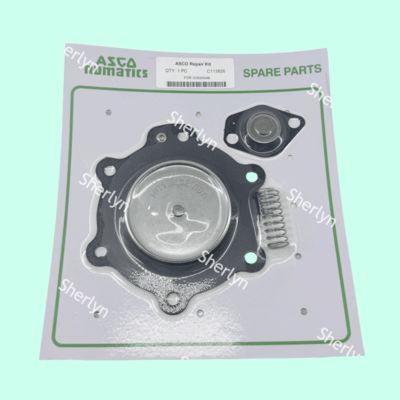

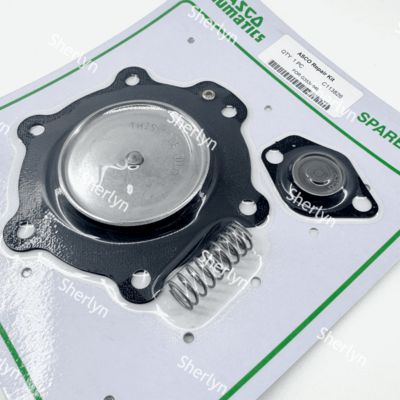

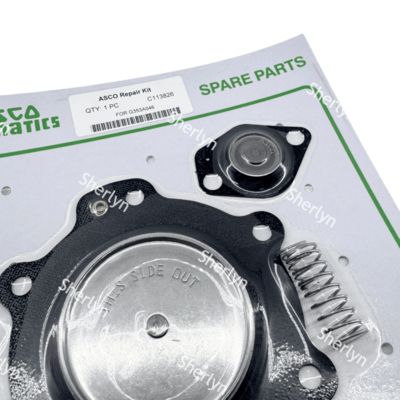

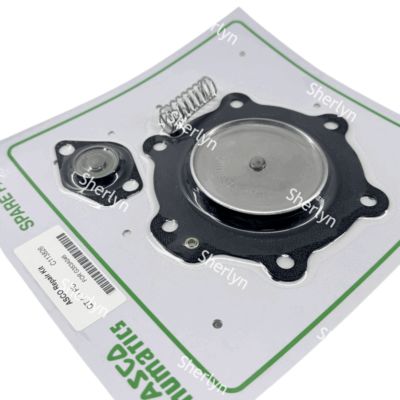

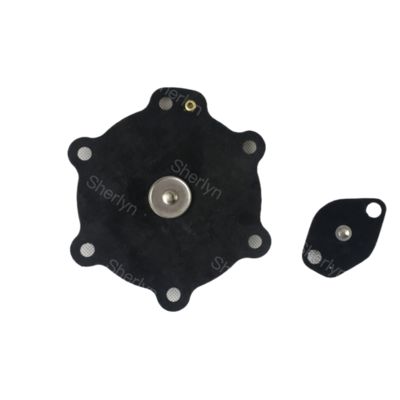

1.5'' C113826 Diaphragm Repair Kit For ASCO G353A046 Remote Pilot Valve
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Ordering Code of Diaphragm For ASCO Pulse Valve:
| Valve Port Size | Pulse Valve Model | Diaphragm Model | Diaphragm Material |
| (FKM is also available) | |||
| 3/4'' | SCG353A043 | C113444 | TPE (White), NBR (Black) |
| 1'' | SCG353A044 | ||
| 3/4'' | SCG353-052 | ||
| 1'' | SCG353-053 | ||
| 3/4'' | SGG353A043 | ||
| 1'' | SGG353A044 | ||
| 3/4'' | SGG353-052 | ||
| 1'' | SGG353-053 | ||
| 1 1/2'' | SCG353A047 | C113827 | NBR |
| SGG353A065 | |||
| 2'' | SCG353A050 | C113685, C113686 | NBR |
| 2 1/2'' | SCG353A051 | ||
| 3'' | SCXE353.060 | C123432, C123433 | NBR |
| SCG353D060 | |||
| 3/4'' | G3530A41 | C113443 | NBR |
| 1'' | G353A042 | ||
| 3/4'' | G353-055 | ||
| 1'' | G353-056 | ||
| 1 1/2'' | G353A045 | C113825 | NBR |
| G353-066 | |||
| 1 1/2'' | G353A046 | C113826 | NBR |
| G353A063 | |||
| 2'' | G353A048 | C113684 | NBR |
| 2 1/2'' | G353A049 |
The Product Technical Support and Services for the Pulse Valve Diaphragm product include troubleshooting assistance, repair and maintenance guidance, and product-related inquiries. Our team of experts is dedicated to ensuring the optimal performance of your pulse valve diaphragm, providing comprehensive support throughout the product lifecycle. Whether you need assistance with installation, operation, or troubleshooting, our technical support team is here to help.
Product: Pulse Valve Diaphragm
Description: High-quality diaphragm designed for pulse valves to ensure reliable performance.
Package Includes: 1 Pulse Valve Diaphragm
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
- Shipping Cost: $5.99
