| 브랜드 이름: | BFEC |
| 인증: | CE |
| Model Number: | DMF-Y-40S |
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Carton /As The Clients Require |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Diaphragm Material: | NBR | Coil Voltage: | 24VDC, 220VAC |
|---|---|---|---|
| Port Size: | 1 1/2'' | Product Name: | BFEC Pulse Jet Valve |
| Product Name: | BFEC Pulse Valve | Valve Type: | Submerged |
|---|---|---|---|
| Port Size: | 1'', 1-1/2'', 2'', 2-1/2'', 3'', 4'' | Coil Voltage: | 24VDC, 220VAC |
| Diaphragm Material: | NBR | No Of Diaphragm: | 2 |
| Highlight: |
DMF-Y-40S Diaphragm Valve,1-1/2'' Diaphragm Valve,SBFEC DMF-Y-40S |
||

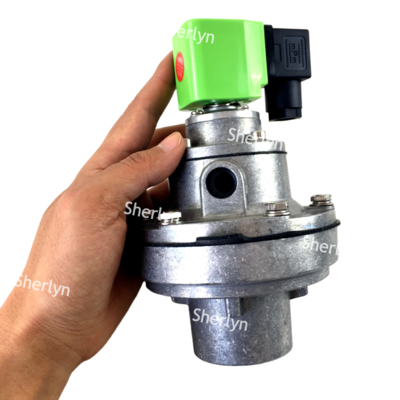

DMF-Y-40S 1-1/2'' Submerged Diaphragm Valve 220V AC 24V DC
The DMF-Y-40S SBFEC type full immersion pulse valves we produce are subject to relevant performance checks to ensure proper service to the customer and have a long service life:
1, Anti-vibration test:
The valve is fixed on the vibration test bench, and after the vibration frequency is 20 Hz, the full amplitude is 2 mm, and the vibration is 30 min, the fasteners of each part of the valve are checked for looseness and the work is normal.
2, Diaphragm life test:
The clean air of the nominal pressure is connected to the air inlet of the electromagnetic pulse valve, and the nominal voltage value of the width of 0.1 s and the interval of 3 s is input on the electromagnetic valve, and the number of consecutive or cumulative operations of the valve is recorded.
Iron and Steel Metallurgy: This system is designed for use in high-temperature and high dust environments, such as sintering heads and blast furnace gas purification. It requires a cooler to maintain a temperature of 60°C or lower. It is recommended to use a DMF-Z right angle valve or submerged valve for optimal performance.
Cement Manufacturing: The system is suitable for kiln tail dust collection and raw material grinding dust removal. It is compatible with DMF-Y submerged valves, such as DMF-Y-80, and can withstand dust at temperatures below 80°C.
Garbage Incineration: For acid flue gas treatment, the system requires Fluorine rubber (FKM) membrane submerged valves, like DMF-Y-62S, to enhance corrosion resistance by eight times.
Wood Processing/Food Chemical Industry: In scenarios involving sawdust or powder pneumatic conveying, straight-through valves from the DMF-T series are recommended. These valves are suitable for use with oil-free dry air containing less than 5 ppm of oil content.
Bunker Arch Breaking: Pulse airflow is used to break material bridges in coal powder silos and grain silos. The frequency of the airflow is maintained at or below 30 times per minute.
Pneumatic Conveying Blockage Removal: Pulse valves are installed at pipeline blockage points to instantly spray and clear powder materials, such as plastic particles and food-grade calcium carbonate.
Technical Data of Y series Submerged Pulse Jet Valves:
Our Product Technical Support and Services for the Pulse Jet Valves include:
- Installation guidance
- Troubleshooting assistance
- Maintenance recommendations
- Product training
- Warranty information
- Spare parts availability
Product Packaging:
The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure they are well-protected during transit. Each valve is individually wrapped in bubble wrap to prevent any damage. The packaging also includes a user manual and installation instructions for easy setup.
Shipping:
We offer fast and reliable shipping services for the Pulse Jet Valves product. Orders are typically processed within 1-2 business days and shipped via reputable carriers to ensure timely delivery. Customers will receive a tracking number to monitor the status of their shipment. We strive to provide a seamless shipping experience for our valued customers.
