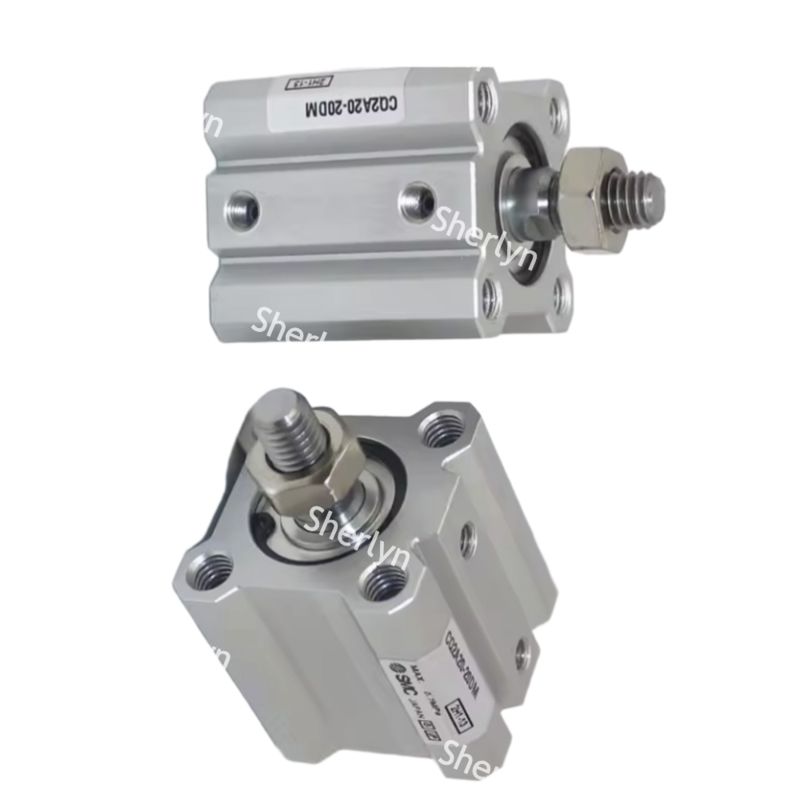

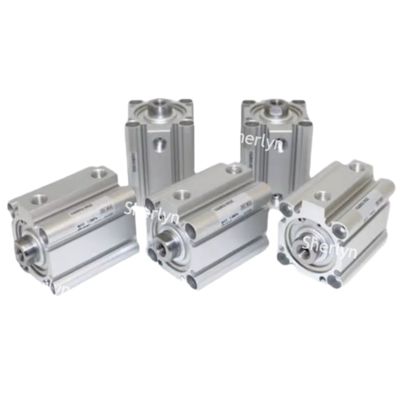

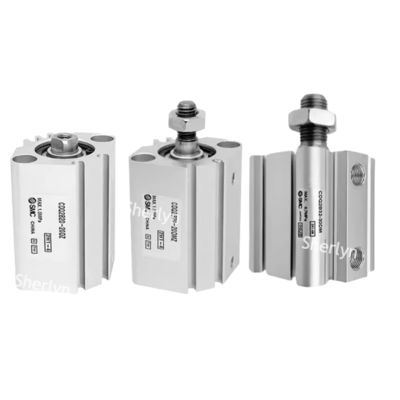

| Brand name: | SMC | 시리즈: | CQ2 |
|---|---|---|---|
| 타격(MM): | 45mm | 실린더 동작: | 이중 작동 |
| 로드 작동 방법: | 단일 막대 | 본체 모양: | [블록 모양] 블록 모양 |
| Cylinder (Tube) Inner Diameter(φ) | 12 | Stroke(mm) | 45 |
|---|---|---|---|
| Cylinder Operation Method | [Double Acting] Double Acting | Rod Operation Method | Single Rods |
| Main Body Shape | [Block Shape] Block shape | Additional Function | Standard |
| Environment, Applications | Standard | Operating Temperature(°C) | -10～70 |
| End Locking | - | Operating Pressure(MPa) | 0.07～1 |
| Cushion | None | Specification | Without built-in magnet |
Ultra slim design
Space saving structure: significantly shortened overall length, with a minimum width of only 7.5mm (SJ2000 valve) to 10mm (SJ3000 valve), suitable for fixtures and automation equipment with limited space.
Lightweight
5%~13% lighter than the old CQ2, reducing equipment load.
Flexible installation and testing
Four sided magnetic switch slot: Models with a cylinder diameter of ≥ 32mm support four-way installation of magnetic switches (double-sided for Φ 12~Φ 25), enhancing layout flexibility; The switch is embedded in the groove without protruding to avoid interference.
Modular accessories: Standard installation bolts and pole end connectors, optional double earring/foot mount components, eliminating additional procurement.
High compatibility and durability
Sealing and buffering: Nitrile rubber (NBR) seals are suitable for environments ranging from -10 ℃ to 70 ℃; Standard rubber cushion pad (some models) to reduce terminal impact.
Protection level: IP65 protection (stainless steel valve body meets NEMA 4X), resistant to dust and humid environments.
Industrial Automation
Positioning and handling: The CQ2-Z standard type cylinder (diameter 20-50mm) is utilized in robotic arm gripper and conveyor belt sorting applications.
Precision assembly: The non-retracting rod (CQ2K) ensures components are free from rotational errors, making it ideal for electronic production lines.
Environmental protection and energy equipment
Dust removal system: The CQ2B160 large cylinder (diameter 160mm) operates the lifting valve and, when combined with a pulse valve, is effective for dust cleaning.
Storage bin control: The sideload-resistant (CQ2 □ S) design prevents arching in powder materials under lateral pressure.
special environment
Food machinery: The water-resistant and washable CQ2-R/V series with EPDM seals is suitable for sterile environments in the food industry.
High temperature scenario: The stainless steel valve body with FKM seals (customized) is capable of withstanding instantaneous high temperatures of up to 120°C.
Product Attribute |
Attribute Value |
|---|---|
| Body Style | |
| Bore Size | |
| Brand | |
| Manufacturer Part Number | |
| Mounting Type | |
| Series | |
| Fluid | |
| Type |
Our product technical support team is dedicated to providing assistance with any questions or issues you may have regarding our Piston Pneumatic Cylinder product. Whether you need help with installation, troubleshooting, or maintenance, our experts are here to help.
In addition to technical support, we also offer a range of services to ensure that your Piston Pneumatic Cylinder operates at its best. This includes preventive maintenance programs, repair services, and product training to help you get the most out of your equipment.
Product: Piston Pneumatic Cylinder
Description: High-quality piston pneumatic cylinder suitable for a wide range of industrial applications.

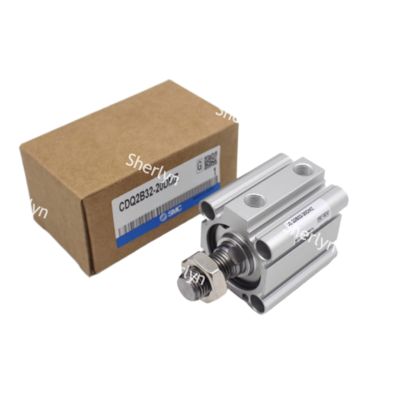

Packaging: The piston pneumatic cylinder is carefully packaged in a sturdy cardboard box to ensure safe delivery.
Shipping: We offer fast and reliable shipping options to ensure your piston pneumatic cylinder reaches you on time and in perfect condition.
