- Size12/16
- Stroke160 mm
- Mounting positionAny
- GuideSliding guide
- Structural designGuide
- Explosion prevention and protectionObserve the information on the certificate
- LABS (PWIS) conformityVDMA24364-B2-L
- Ambient temperature-20 °C ... 80 °C
Product Description:

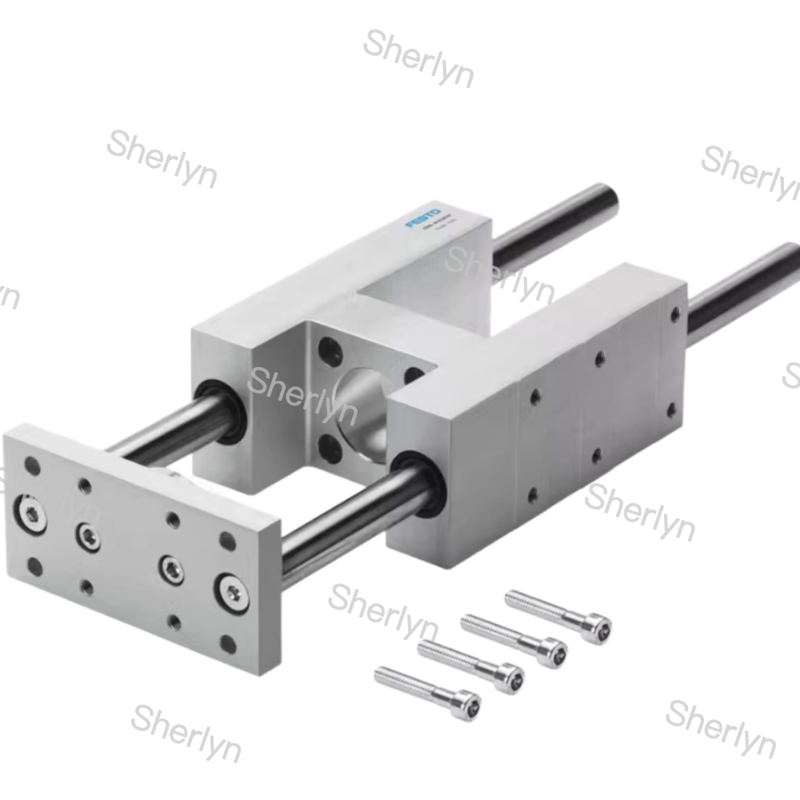

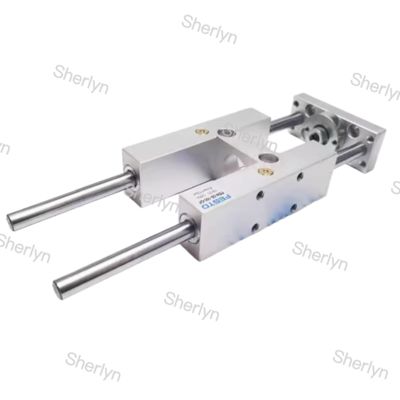

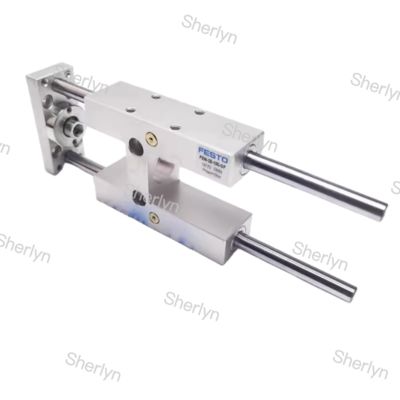

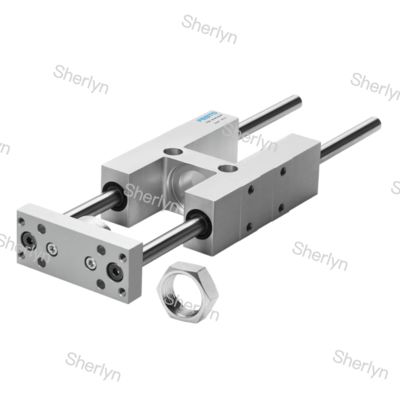

Product Features of FESTO FEN Series Guided Cylinders
The FESTO FEN series guided cylinders are specifically engineered for high-precision applications that demand consistent linear motion. These cylinders boast a range of key features:
- Integrated Guidance System: The cylinders are equipped with built-in guide rods or profile rails that deliver exceptional anti-rotation capability and moment resistance. This ensures precise positioning and stable movement even under significant side loads.
- High Rigidity and Load Capacity: The durable construction of the cylinders allows for the handling of substantial moment loads and lateral forces. These qualities make them ideal for applications that require high stiffness and durability.
- Compact Design Space: Despite their robust build, the FEN series cylinders maintain a compact footprint. This space-efficient design facilitates easy integration into machinery with limited installation space.
- Smooth Operation: Options are available with slide bushings or recirculating ball bearing guides, enabling smooth, low-friction movement with high positioning accuracy.
- Maintenance-Friendly Design: Many models in the series offer long service life with minimal maintenance needs. Additionally, corrosion-resistant variants are available for applications in challenging environments.
Applications:
Product Applications of FESTO FEN Series Guided Cylinders
The FEN series finds extensive use across various industrial automation sectors:
- Precision Assembly Operations: Ideal for pick-and-place systems, component insertion, and precision assembly tasks where accurate positioning is critical.
- Material Handling Systems: Widely used in automated transfer lines, loading/unloading stations, and material positioning equipment that requires guided linear motion.
- Testing and Inspection Equipment: Suitable for applications requiring precise linear movement in testing apparatus, measurement devices, and quality control stations.
- Automated Production Lines: Commonly implemented in packaging machinery, semiconductor manufacturing equipment, and automated production systems.
- Electronics Manufacturing: Particularly valuable in PCB handling, component assembly, and other electronics production applications where precise, non-rotating linear motion is essential.
